Application : Parking, Hospital, Library, Company, Bank, Store
Output Interface : Wiegand26/34, RS485
Product Size : 25.5*25.5*4.2cm
Max Output Power : 30dBm (Adjustable)
HS Code : 8471702000
PC Interface : RS232
Encryption Version : Anti-Cloning
Interface : Serial Port, Wiegand
Antenna : Circular Polarization/Linear Polarization
Working Temperature : -25℃~+70℃
Brand Name : JUTAI
Model Number : PUHF-9P
Certification : CE
Place of Origin : China
MOQ : 1
Price : Negotiation
Payment Terms : T/T,L/C,D/A,D/P,Western Union,Paypal,MoneyGram,Alipay
Supply Ability : 1000 pieces per month
Delivery Time : 5 - 8 working days
Packaging Details : Cartoon
Frequency Range : 902-928MHz/860-868MHz
Installation : U-Shaped Pole
Power Supply : Current Transformer, Input 220V, out 9V/3A
Reading Distance : 1-9m
Encrypted UHF RFID Parking Access Reader with Waterproof Design and Durable Construction
The JUTAI passive low-cost hands-free parking solution integrates an ultra-high-frequency long-range reader and utilizes UHF band RFID technology. It is targeted at a low-budget car parking access control system solution. This solution is mainly used in long-range parking systems.
Customers can choose the JUTAI parking control board and use the entire JUTAI parking access control software. They can also integrate it into their own parking access control software through the Wiegand 26/34 interface or RS485. This solution is mainly used in a total hands-free parking solution.
By directly connecting to the JUTAI parking access control software via TCP/IP, there is no need for an additional converter, which is very easy and convenient for users. In rainy weather, there is no need to roll down the car window or use hands to take the card, it is a completely hands-free but low-cost solution.
The JUTAI passive low-cost hands-free parking solution has the advantages of convenient operation, diverse functions, strong adaptability, energy conservation, and environmental protection. It is a parking access control system solution with high cost performance.
Not only do we offer encrypted UHF solutions, but we also provide a complete parking management system. With over 30 dedicated developers, we focus on independently developing software platforms to meet your customized needs.
Whether it's tailored services or comprehensive after-sales support, we're here to provide professional assistance, so you won't have to worry about post-purchase debugging or other issues. As bank card and mobile payments gradually become mainstream, our development team can integrate with local banks and online payment platforms to facilitate convenient payments for your parking management system.
| Name | Long Range UHF RFID Card Reader Access Control Systems Kit |
|---|---|
| Operating Frequency | 902-928MHZ |
| Protocol | SO18000-6C(EPCGEN2) |
| Frequency Hopping Mode | Fixed Frequency Band and FHSS Software Programmable |
| Antenna | 9dBi circular polarize antenna (Integrated) |
| Output Power | 0dBm~18dBm(Adjustable) |
| Read/Write Range | Max Read Range: 20m, Max Write Range: 6m |
| Operating Mode | Master-Slave Mode(Online Mode); Time Scheduled Modes; Trigger Mode |
| Power | 9V-12V |
| Communication Port | RS-232/Wiegand Interface: Wiegand26 & Wiegand34 Supported; RS-485/10/100MEthernet, GPRS.WIFI(for Customized Model only) |
|
|

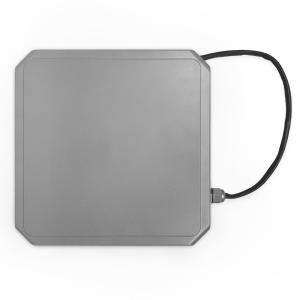

902-928MHz / 860-868MHz Parking Access Encrypted Long Range UHF RFID Reader Anti Cloning Images |
